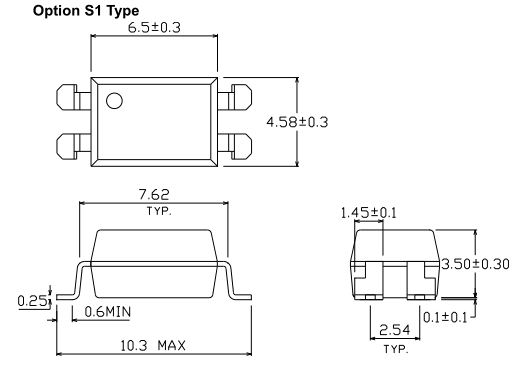

光耦继电器结构封装图:
光耦继电器EL440A特点:
Normally open signal pole signal throw relay
Low operating current
60 to 600V output withstand voltage
Low on resistance
Wide operating temperature range of -40°C to 85°C
High isolation voltage between input and output (Viso = 5000 Vrms)
UL 1577 + cUL approved (No. E214129)
UL 508 + cUL approved (No. E348721)
VDE approved (No. 40028391)
SEMKO approved
NEMKO approved
DEMKO approved
FIMKO approved
CQC approved
光耦继电器描述:
The EL406A, EL425A, EL440A and EL460A are solid state relays containing an AlGaAs infrared LEDs on the light
emitting side (input side) optically coupled to a high voltage output detector circuit. The detector consists of a
photovoltaic diode array and MOSFETs on the output side. The single channel configuration is equivalent to 1 form A
EMR. They are packaged in 4 pin DIP and available in surface mount SMD option.
Applications
Exchange equipment
Measurement equipment
FA/OA equipment
Industrial controls
Security
光耦继电器应用:
Security

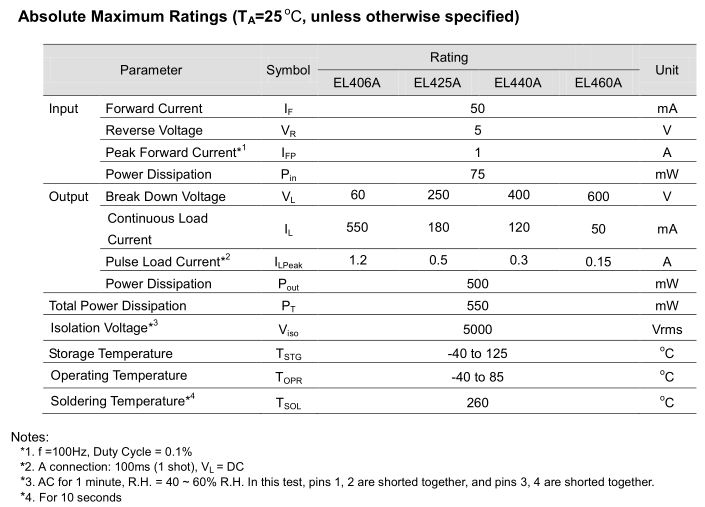

光耦继电器参数:
